  • Pencil Puzzle Revisited

    I did this today. The holes are a little off-center. I have in-process pics too!
    Attached Files
    Last edited by Woodbutcher68; 02-17-2007, 04:00 PM.
    Fred


    There's a fine line between woodworking and insanity, I'm just not sure which side of the line I'm on!

  • #2
    Oh boy, here we go again! Actually, I'm just kidding. Congratulations! I hear it's quite difficult to acheive, is that true? Tell us how YOU did it, please.
    Mia

    We are the music makers.
    We are the dreamers of dreams.


    Easy scrollin' with a DW788

    Comment


    • #3
      Way to go Fred. I wondered how many people were curious enough to take on the challenge of trying to figure this out. I also tried it but no proof as I didn't take any pics.

      Paul S.

      Comment


      • #4
        OK, I'm stumped... Do post the in-process pics.
        Jim

        The limits of the imagination are imaginary.
        No task is too tedious for Art.
        Rock and Scroll

        My Gallery

        My Website
        Featherwood Woodcrafts

        Comment


        • #5
          Hi Woodbutcher.
          That's a good one and I would also like to know the secret to that one. I am thinking the method is similar to the arrow through an apple puzzle .
          I presume both the pencil and the wood block are totally solid with no glue joints in either piece.

          I love puzzles like this.

          Here is one that I am out of again and must make a few more when I get around to it because people buy them for a conversation piece.
          Like the wood block with the pencil in it there is only two pieces of wood with absoloutly no glue joints anywhere . This is an easy one to do and probably most here will know how I do it but I would like to know the secret behind the one you posted with the pencil.

          The apple is turned on my lathe in one piece and the arrow is both turned on the lathe and scrollsawed and is also one piece .
          W.Y.





          http://www.picturetrail.com/willyswoodcrafting

          The task ahead of us is never as great as the power behind us

          Delta P-20 Scroll Saw, 14" x 43" Craftex Wood Lathe and Jet 10" Mini Lathe .

          Comment


          • #6
            Here we go!

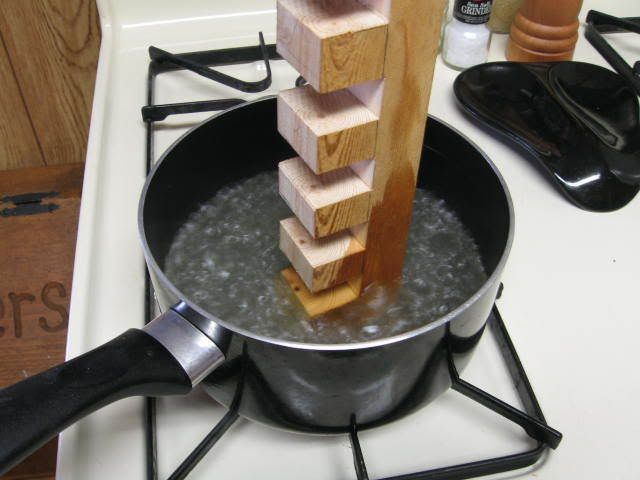

            1. I cut out the notches and put one end into a pot of boiling water for 20 minutes.

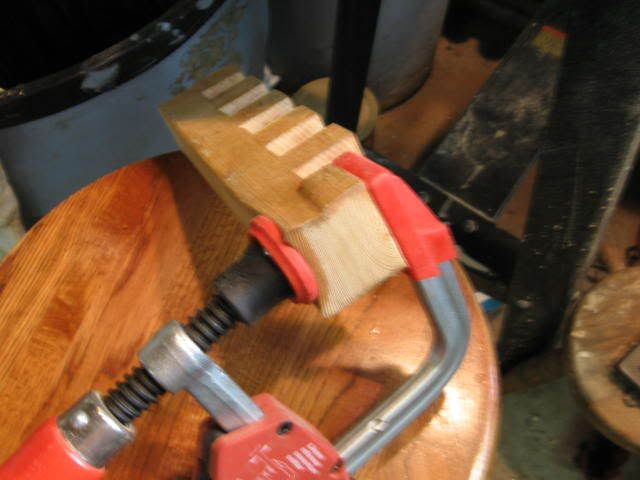

            2. I compressed the boiled end with a Bessy Clamp until I had clearance for the drill bit. A bench vise would be better, but I didn't want the water to freeze in the garage over night.

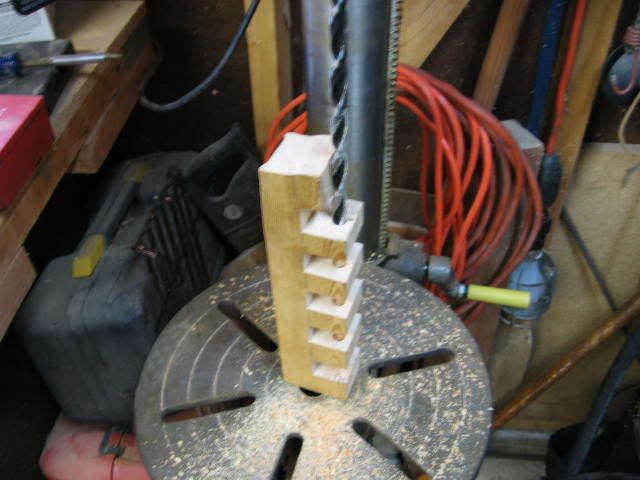

            3. After drying all night, I removed the clamp and drilled the holes. One end wasn't square, so the hole is on an angle.



            After drilling the hole and inserting the pencil, I put it back in boiling water until the wood resumed it's original shape. I let it dry and sanded it.
            That's it!
            Have fun with it!
            Fred


            There's a fine line between woodworking and insanity, I'm just not sure which side of the line I'm on!

            Comment


            • #7
              Neat. What kind of wood did you use? Or does it matter?
              Diane
              Dragon
              Owner of a nice 21" Excalibur
              Owner of a Dewalt 788
              PuffityDragon on AFSP

              Comment


              • #8
                Pretty cool Fred.
                Thanks for posting the pictures.

                Bob
                Delta P-20 & Q-3

                I wondered why the baseball was getting bigger. Then it hit me!

                Comment


                • #9
                  Thanks so much for the great pictures of each step!
                  Mia

                  We are the music makers.
                  We are the dreamers of dreams.


                  Easy scrollin' with a DW788

                  Comment


                  • #10
                    It's pine, you'd have a very hard time compressing a hardwood that much. The pic with the vise didn't come out very clear, but you get the idea.
                    Fred


                    There's a fine line between woodworking and insanity, I'm just not sure which side of the line I'm on!

                    Comment


                    • #11
                      Fred,
                      You are a master. Thank you.
                      Mike
                      SD Mike

                      Comment


                      • #12
                        LOL! Thanks Fred for the pics.
                        Bill

                        DeWalt 788



                        aut viam inveniam aut faciam

                        God gives us only what we can handle.. Apparently God thinks I am one tough cookie.....

                        Comment


                        • #13
                          Nail puzzle

                          I don't have a drill long enough for the pencil, but I did make these today. I used red cedar for the wood. I learned alot on these, now I think I can tackle the pencil one when I get the right size drill.

                          I took one of these to Lowes today and asked one of the guys in the tool department if he had a rubber drill so I could drill holes like the ones in the block. He told me to go to the electrical department, that they have flexible bits there. He was dead serious. Any way, these are going to be fun to take to the hardware stores and see the reactions of the people working there. It drives them nuts when you don't tell them how it's done.
                          Attached Files
                          Bill

                          I have an RBI Hawk 220-3 VS

                          Visit my Gallery
                          and website www.billswoodntreasures.com

                          Comment


                          • #14
                            Awesome,
                            Thanks wood butcher...I knew how to do the arrow through the heart trick, same as the arrow through the apple. It hit me when I saw the apple pic from Will Young, ( looks great, by the by). I'll be doing this one soon, probably a few times, as people will see this and want one.
                            Jim

                            The limits of the imagination are imaginary.
                            No task is too tedious for Art.
                            Rock and Scroll

                            My Gallery

                            My Website
                            Featherwood Woodcrafts

                            Comment


                            • #15
                              Originally posted by William Young (SE BC)
                              Hi Woodbutcher.
                              That's a good one and I would also like to know the secret to that one. I am thinking the method is similar to the arrow through an apple puzzle .
                              I presume both the pencil and the wood block are totally solid with no glue joints in either piece.

                              I love puzzles like this.

                              Here is one that I am out of again and must make a few more when I get around to it because people buy them for a conversation piece.
                              Like the wood block with the pencil in it there is only two pieces of wood with absoloutly no glue joints anywhere . This is an easy one to do and probably most here will know how I do it but I would like to know the secret behind the one you posted with the pencil.

                              The apple is turned on my lathe in one piece and the arrow is both turned on the lathe and scrollsawed and is also one piece .
                              W.Y.





                              Hi William, I'm a wood turner & am very interested in how to make the arrow in the apple. This is the first time that I have seen it though several people have talked about it on here before. Now that I have seen it I have to make one. Could you tell me how you did it?
                              Troy

                              Scrollin' with DeWalt DW788

                              Comment
